FR13-S101K Set
$34.35
Sale price
$34.35
Regular price
$45.20
Skip to product information
FR13-S101K Set
$34.35
Sale price
$34.35
Regular price
$45.20
Features

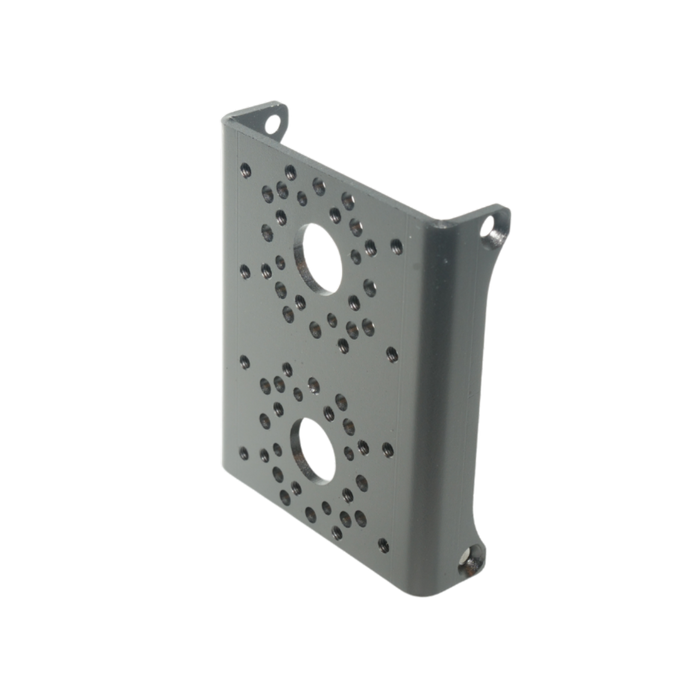

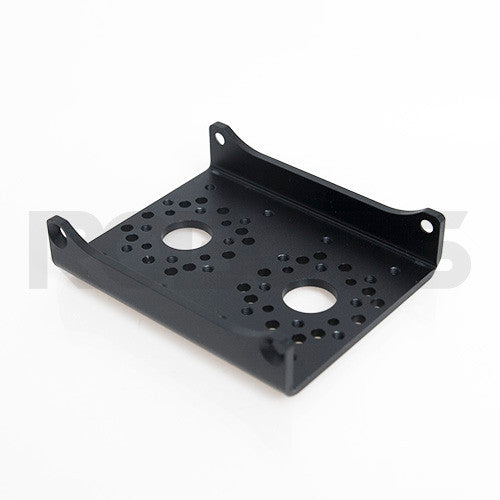

Side frame set for X540 series

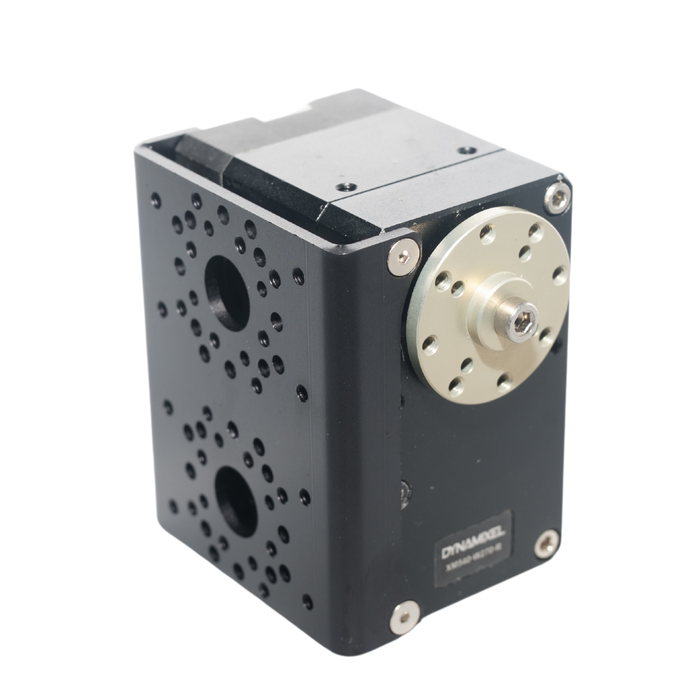

Can be used by assembling on the bottom side of the DYNAMIXEL.
Package Components
| Item | Quantity | Description |
|---|---|---|
| FR13-S101K | 1 | Side Frame for X540 |
|
Flat head Wrench Bolt FWB M2.5x17 |
4 | For Side Frame assembly |
|
Wrench Bolt WB M2.5x5 |
8 | For Frame assembly(Side hole) |
|
Wrench Bolt WB M2.5x4 |
10 | For Horn and Hinge Frame assembly |
|
Spacer Ring |
10 | For Frame assembly |
Compatible Products
X540-Series
How to Use
Cannot be assembled with DYNAMIXEL AX/RX/MX Series.
* This image is an example of assembling the option frame for X430 and X540 also can be assembled using the same method.
Caution
Link
- Drawing
- Compatibility Guide
- Frame Combination
