EPX540-BR101 Set
$40.89
Sale price
$40.89
Regular price
$62.91
Features

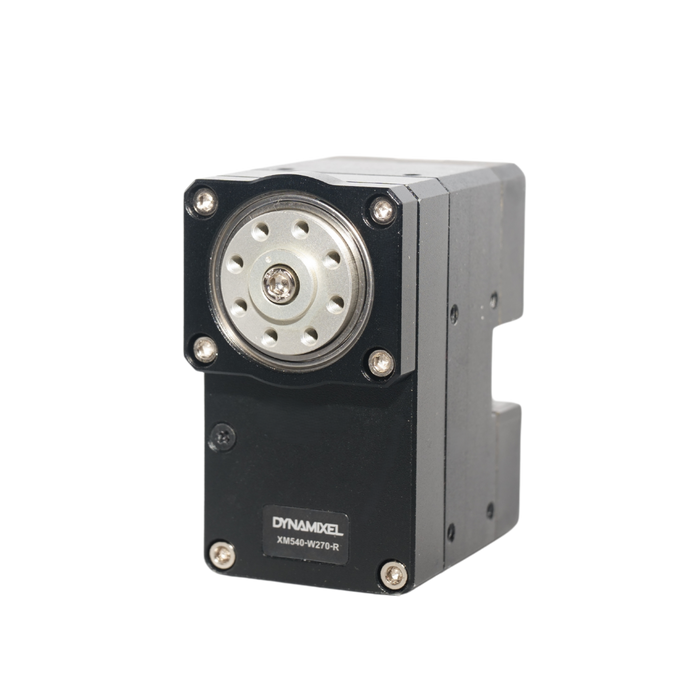

The EPX540-BR101 is an optional horn for the DYNAMIXEL XM/XH/XD540 series.
The horn connected to the output shaft distributes radial load and minimizes wear.

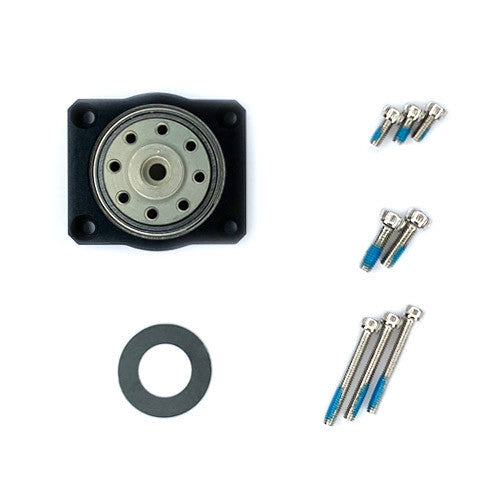

Package Contents
| Product | Quantity | Description |
|---|---|---|
| EPX540-BR101 | 1 | Horn for output shaft |
| Wrench Bolt (WB M2.5x20) | 3 | Bolts for upper part assembly |
|
Wrench Bolt (WB M2.5x6) |
3 | Bolts for lower part assembly |
| Wrench Bolt (WB M3x10) | 2 | Bolts for horn-shaft assembly |
| Thrust washer | 1 | Washer for preventing rotational friction |
How to Assemble
Please be sure to check the assembly instruction below before use.
Caution
1. Be sure to check the assembly example and use it after installing it correctly.
2. When installing the option horn the product of the option frame is not compatible so please check before purchasing.
Link
- Drawing
