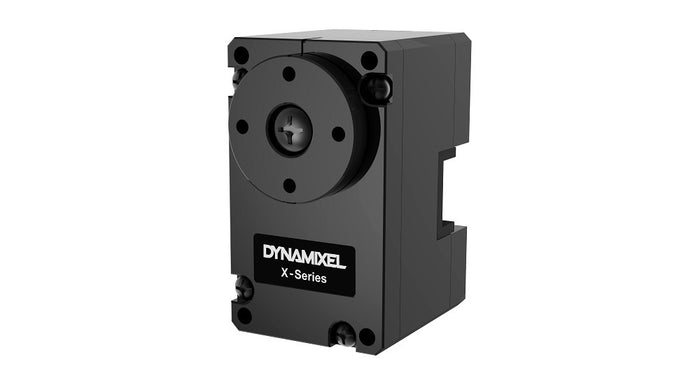

DYNAMIXEL XL330-M077-T

DYNAMIXEL XL330-M077-T

$20.89
$20.89 $27.49
Skip to product information
DYNAMIXEL XL330-M077-T
  • DYNAMIXEL XL330-M077-T
  • DYNAMIXEL XL330-M077-T
DYNAMIXEL XL330-M077-T

DYNAMIXEL XL330-M077-T

$20.89
$20.89 $27.49



Package Contents

Item Name Quantity Description
XL330-M077-T 1 DYNAMIXEL Servo
Robot Cable-X3P 180mm 1 TTL 3P Cable (JST - JST)
PHS M2x6 TAP 6 Bolts for horn attachment
PHS M2x8 TAP 10 Bolts for frame attachment




Supported Features

Operating Mode Description Typical Use Case
Current Control Mode Controls the current (torque) applied to the motor. Grippers, force-sensitive applications.
Velocity Control Mode Controls the rotational speed continuously in either direction. Wheels, rollers, or drive systems.
Position Control Mode (0–360°) Moves to and holds a specific angle within 360°. Pan-tilt mechanisms, angular joint positioning.
Extended Position Control Mode Allows multi-turn (±256 revolutions) position control. Robotic arms, winches, mechanisms requiring precise multi-rotation movement.
PWM Control Mode (Voltage Control) Directly controls the applied voltage via PWM, without position or velocity feedback. Open-loop systems, testing, or simple motor control without feedback.




Feedback Type XL330-M288-T XL330-M077-T
Position ✓ ✓
Velocity ✓ ✓
Current ✓ ✓
PWM ✓ ✓
Input Voltage ✓ ✓
Temperature ✓ ✓
Realtime tick ✓ ✓
Trajectory ✓ ✓













































 ROBOTIS Assurance - QC/QM Process, QC Sticker for each product, Certification, Highest Quality Materials & Product, Fast and On Time Delivery, Customization Options Available, B2B Partnerships, Expert and Timely Support, One Year Limited Warranty
